Series 100
PVC windows and patio doors featuring advanced glass systems for superior energy efficiency. The 3 1/4" uPVC frame with thermally welded mitre joints delivers exceptional structural integrity.
CW Performance
Grade up to CW-PG85
Energy Star
Most Efficient rated
Multi-Point Lock
Enhanced security
NFRC Certified
Tested & verified
Available Configurations

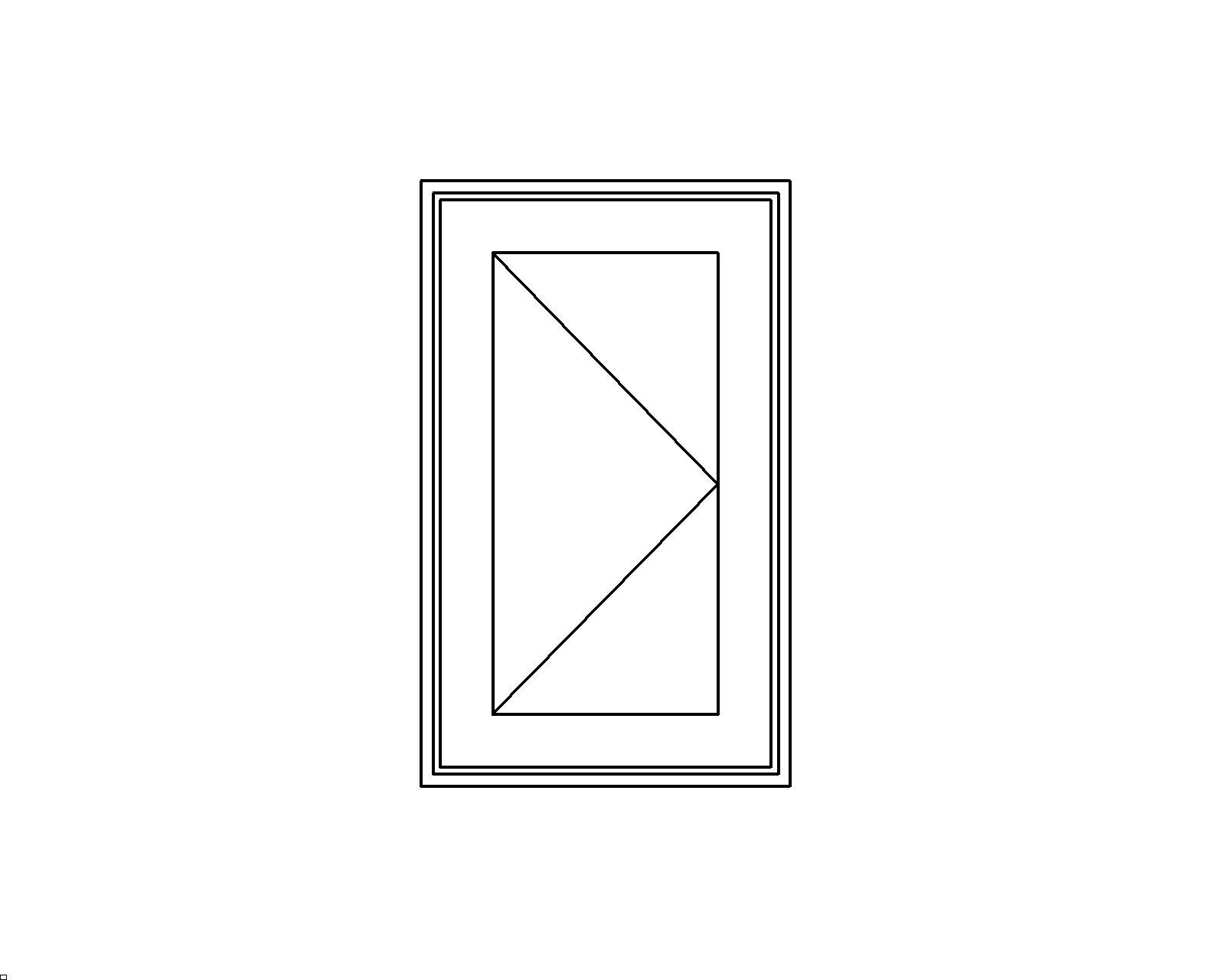

casement

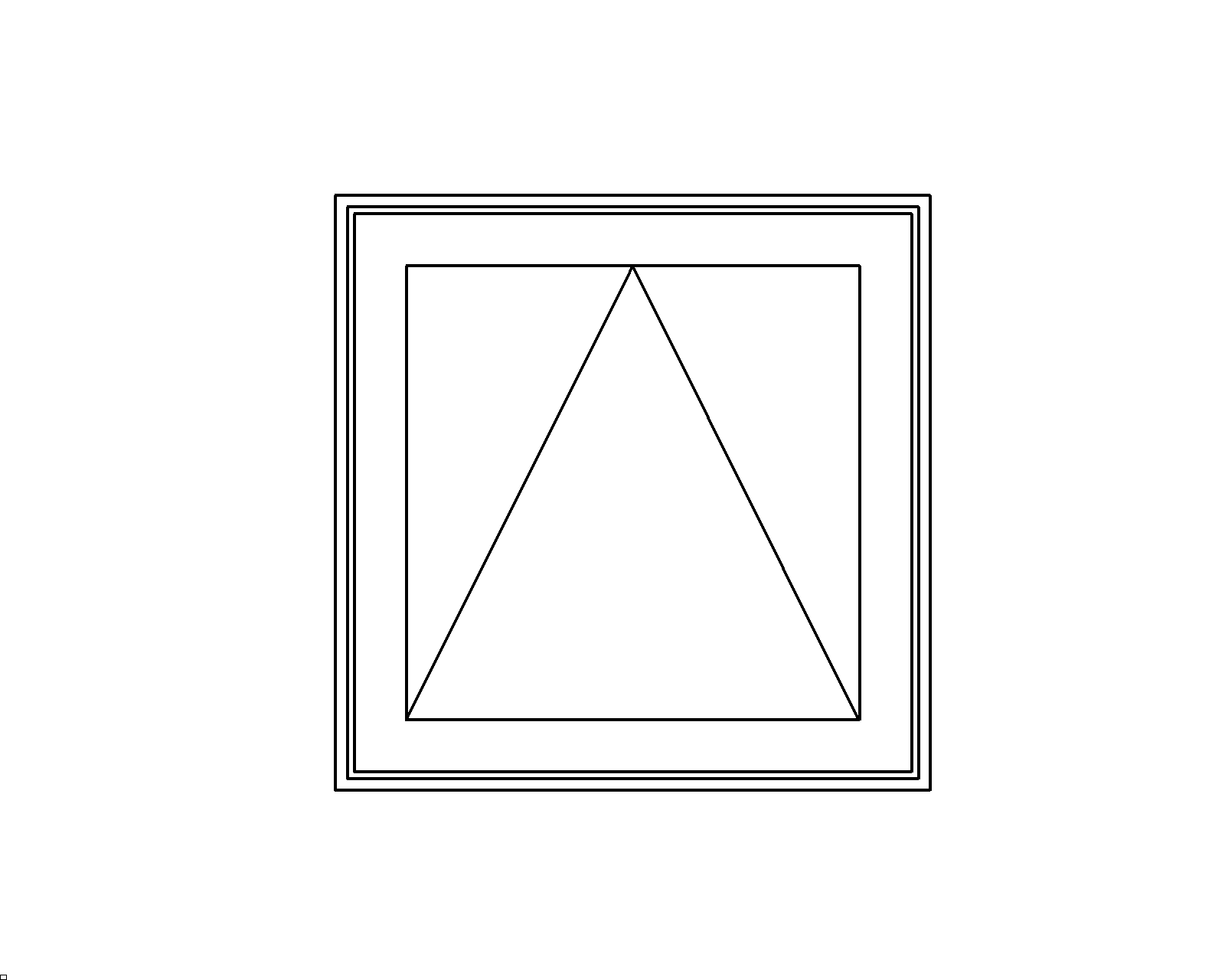

awning

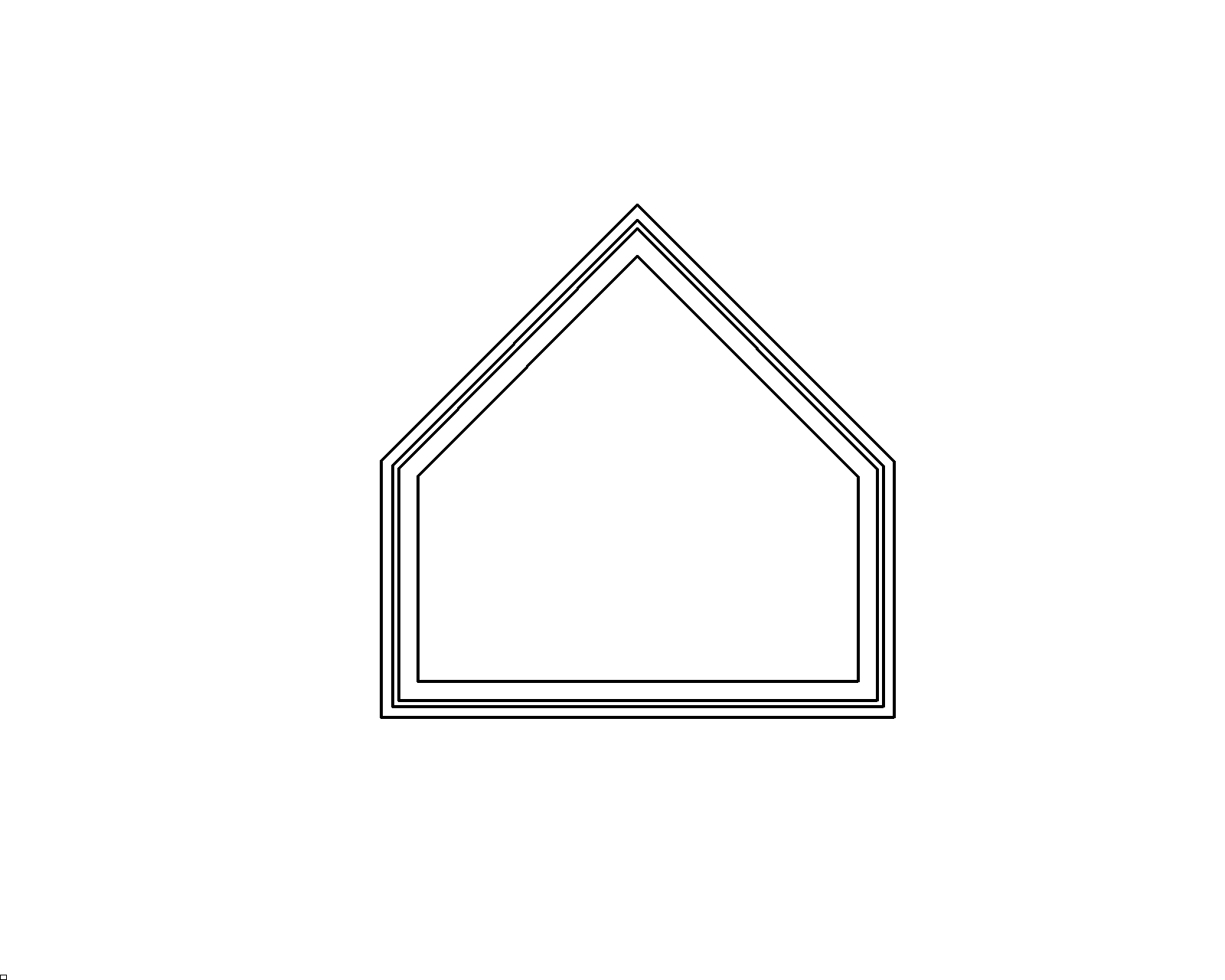

rakes

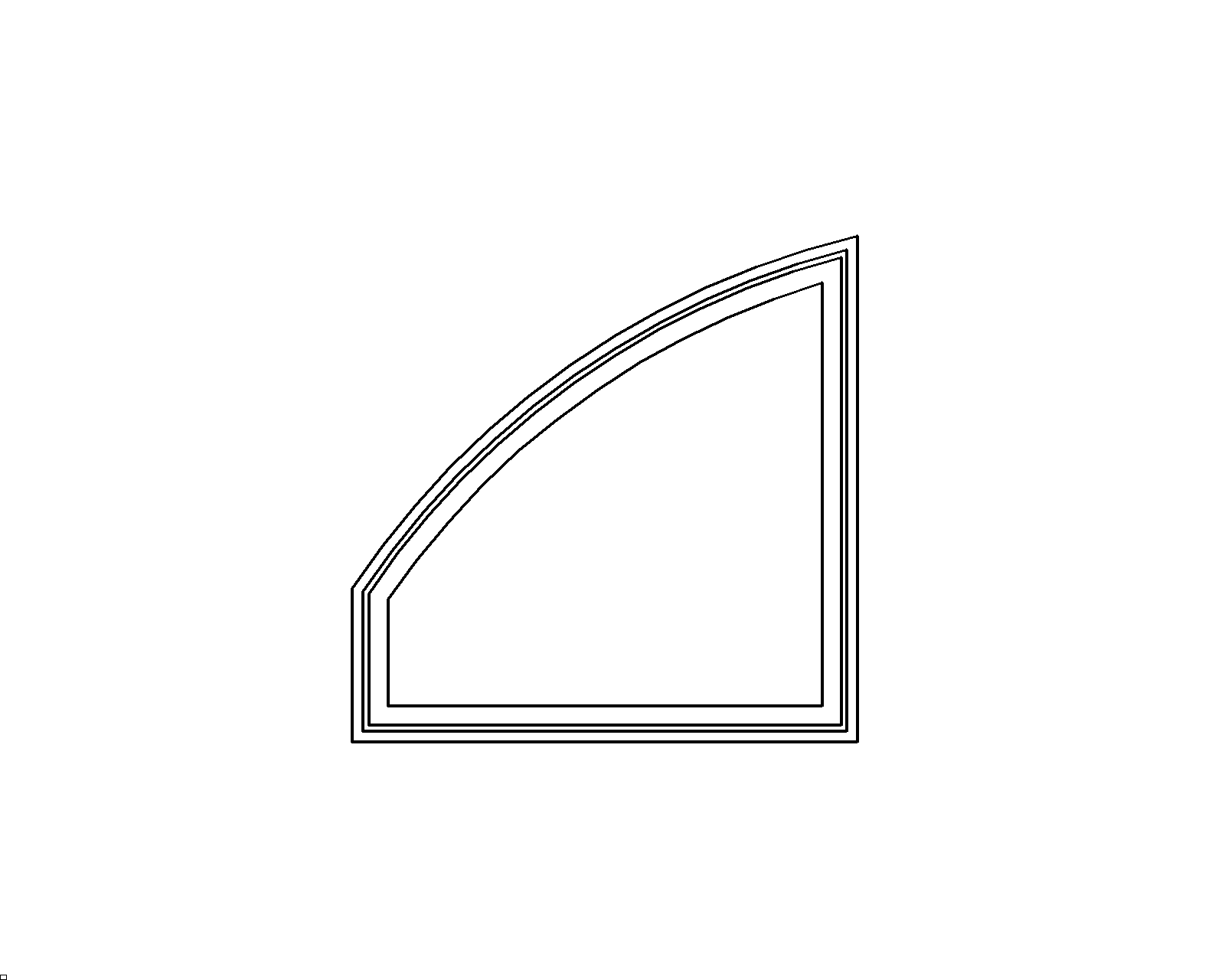

shapes
fixed
Technical Specifications
Frame Construction

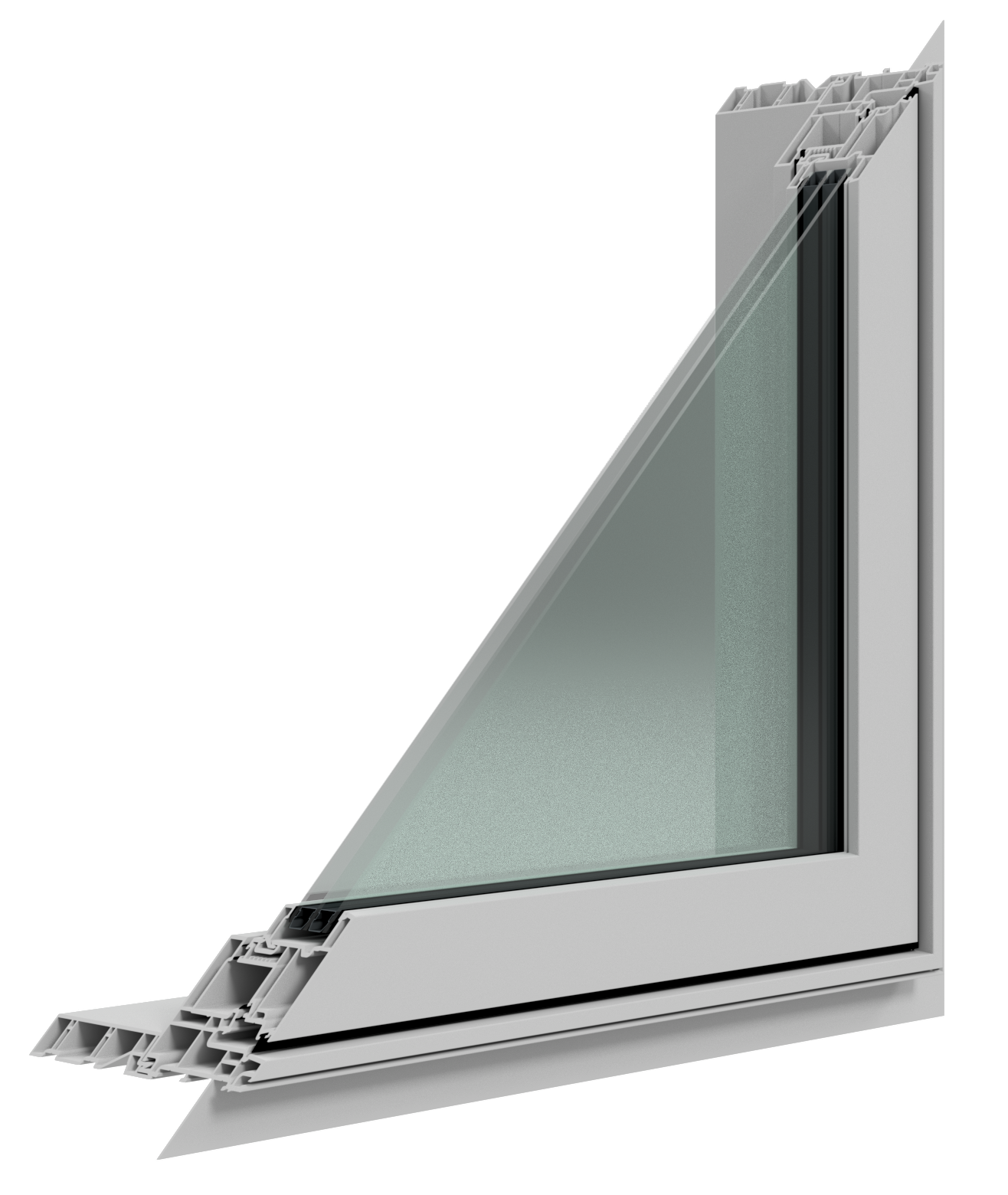

3 1/4" uPVC frame with thermally welded mitre joints. Virgin material construction for long-lasting durability. Low-maintenance cleaning requirements.
Glass Technology
Premium stainless steel spacer bars. U-Values down to 0.85 W/m²-K. SHGC range: 0.15–0.59. Cardinal, Vitro, Guardian glass options.
Weatherproofing
Triple weatherstripping barrier with two coextruded compression bulbs and one pile brush for maximum air and water resistance.
Accessories
Interior jambs up to 12 1/4" wall depth. Exterior brickmoulds and extensions. Integral nail-fin installation system.
